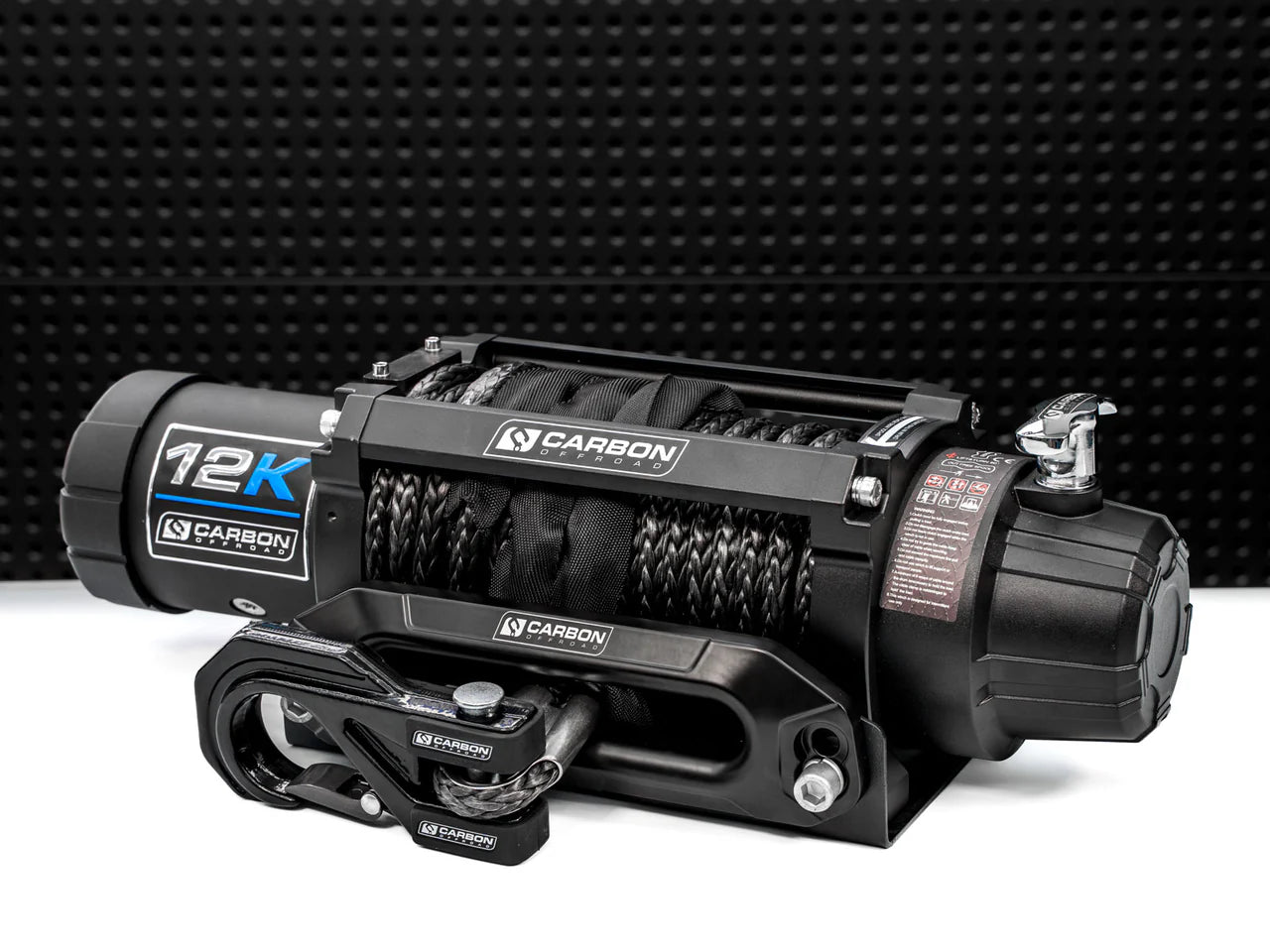

- Part number: CW-12k
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6.2HP series wound motor (24V option available)
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 216:1

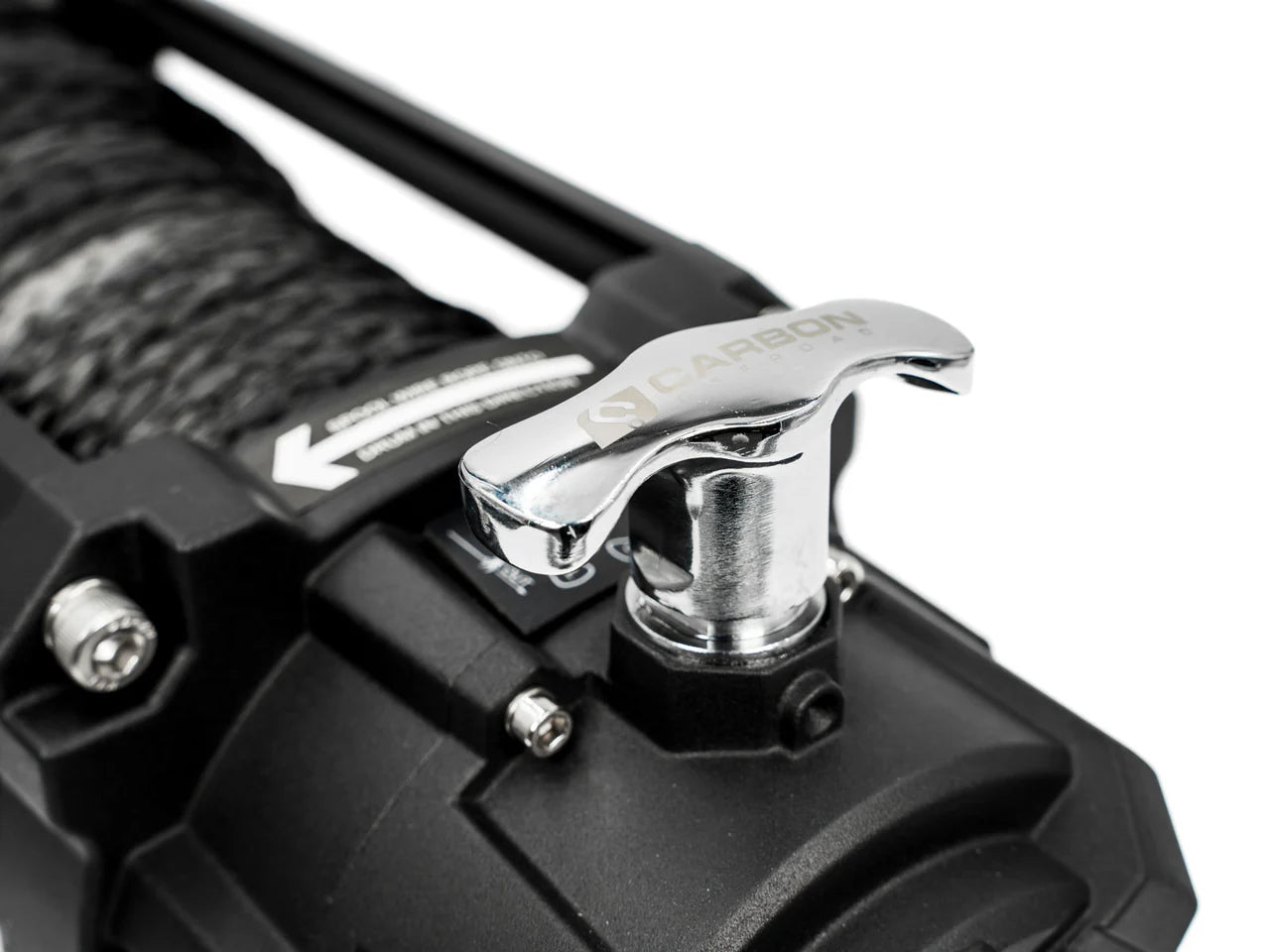

- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 64mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm)
- Packing Dimensions (L x W x H): 24.2" x 14.5" x 9.8" (615 x 370 x 250mm)
- Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
PLEASE NOTE PRICE MIGHT VARY IF THE BULLBAR IS INSTALLED ALREADY
