Description
Product Description

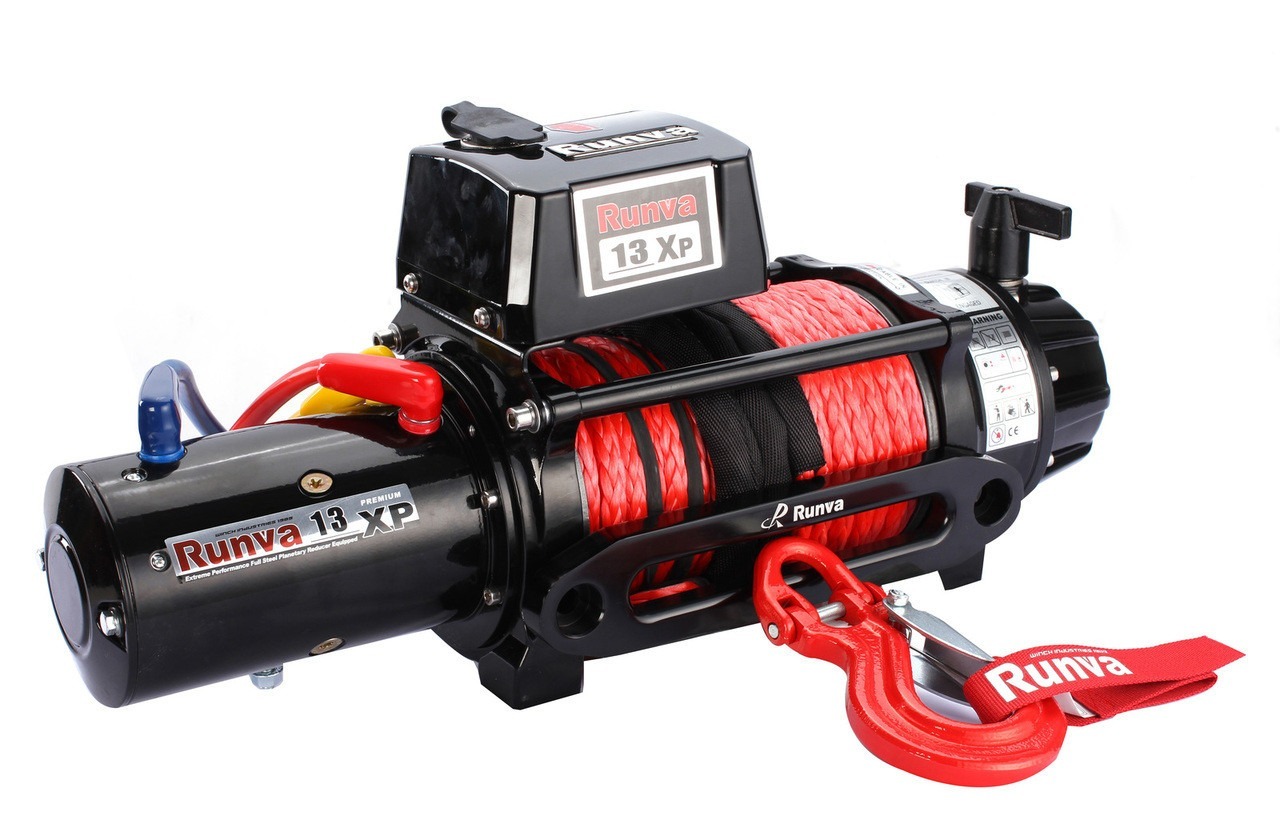

Ideal for most heavy duty 4X4 applications, this model features the newly designed gearbox with integrated ratchet braking system. The ENTIRE winch is IP67 rated. Another fantastic model crafted by Runva.
The winch is supplied with 3 mounting options for the latest style control box:
– Mount it over the winch motor
– Mount it over the drum
– Mount it on a winch bar
Specifications
Rated Line Pull – 13000lb (5897kg)
Motor – Series Wound (12V) 5.6kW/7.6HP – IP67 Rated
Gear Train – Full Steel 3 Stage Planetary
Gear Ratio – 228:1
Brake – Automatic Rachet Load Holding in the gearbox
Dyneema – 11mm x 26.5m
Drum Size – 63mm x 217m
Mounting Bolt Pattern – 254mm x 114.3mm

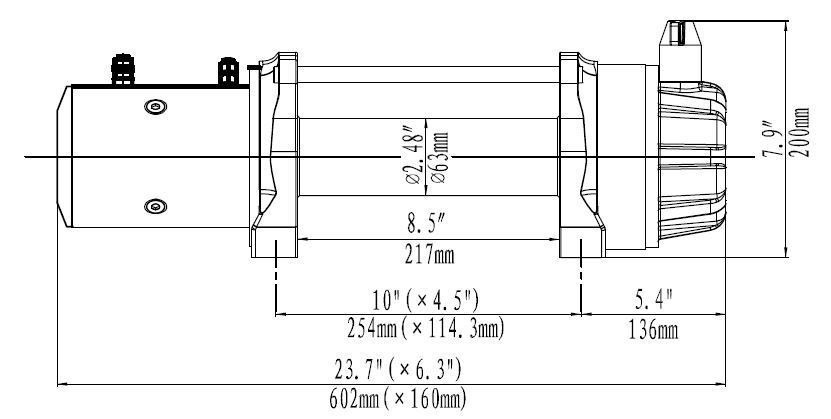

Overall Dimensions – 602mm x 160mm x 200mm
Remote Control – 3.7m Handheld Remote/Wireless Remote
Battery Leads Included – 2 x 1.8m Heavy Duty Leads
Finish – Black Powder Coat
Net Weight – 31.4kg
Gross Weight – 33.4kg (includes packaging)
Warranty – Limited Lifetime
Shipping calculated at checkout is for Metro Brisbane, Sydney, Melbourne, Adelaide, Hobart, and Perth. If you are out of these areas, contact us for freight quote or we will call you prior to shipping for the extra charge.
